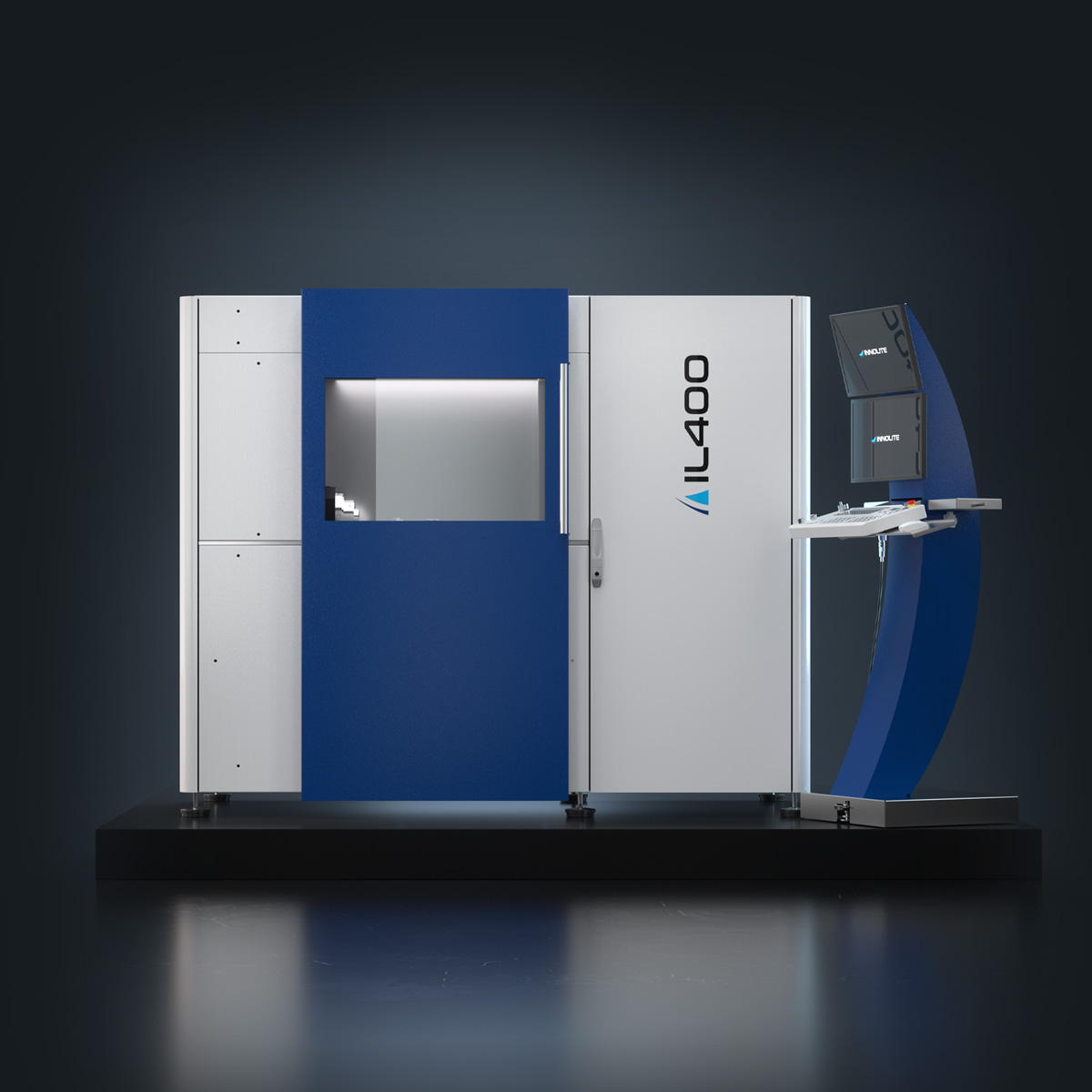

IL400
UP Lathe

angström. automation. 4axis.

The IL400 is our latest ultra-precision machine platform development to introduce ultimate precision, small size 4axis kinematics, and flexibility in automation for small and medium sized components. Due to it's compact base axis design, a control system integrated active machine bed decoupling and a new compensation for dynamic following errors, the IL400 allows for unmatched surface finishes. An optional small frame all hydrostatic vertical axis turns the machine into a fully performing 4-axis platform for parts up to 2 inch in diameter. Automated back doors allow for robot automation and scalable productivity in serial production. To put it short: The IL400 is our next generation high performance platform!

Key Features

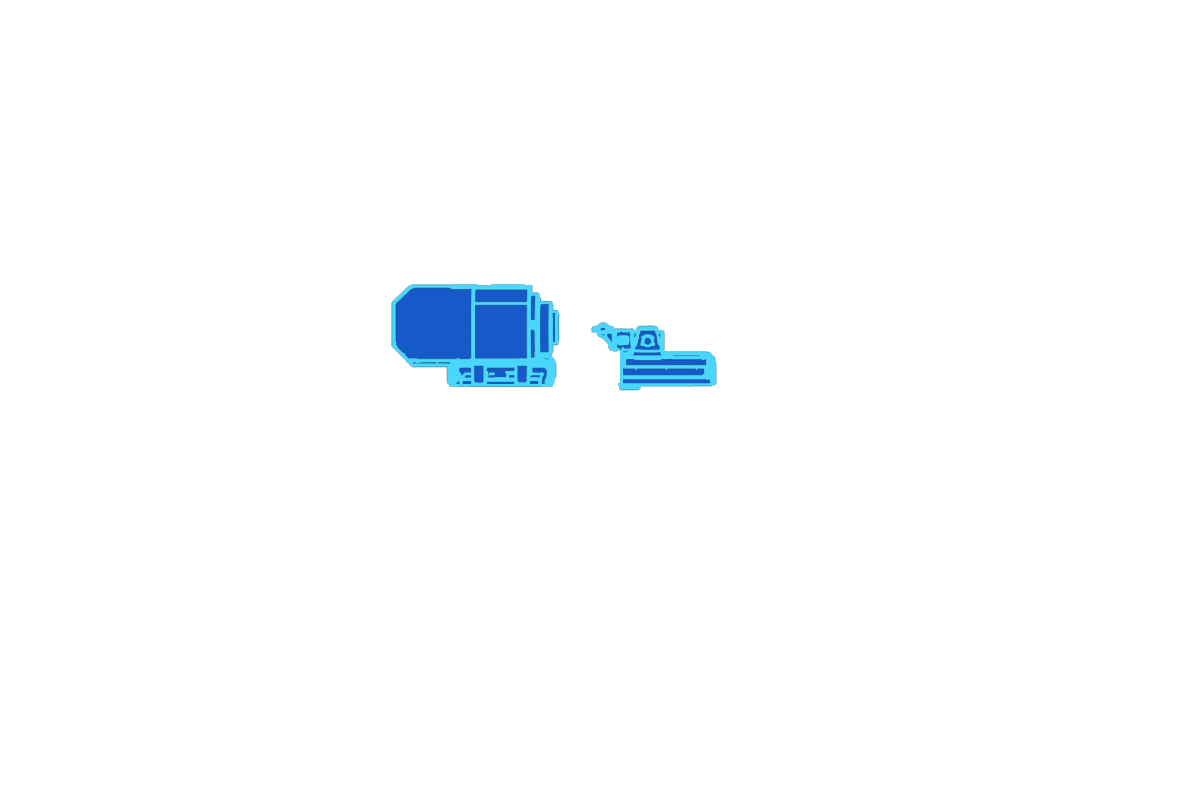

Small Frame Y-Axis

The small frame Y-Axis for the IL400 platform turns the machine into a 4-axes ultra-precision machining center. With a stroke of 60 mm you can raster machine parts > 2 inch in turning, ruling, milling or metrology scanning. The all oil hydrostatic axis with linear motor and gravitational compensation lines up with our standard ultra-precision axes designs.

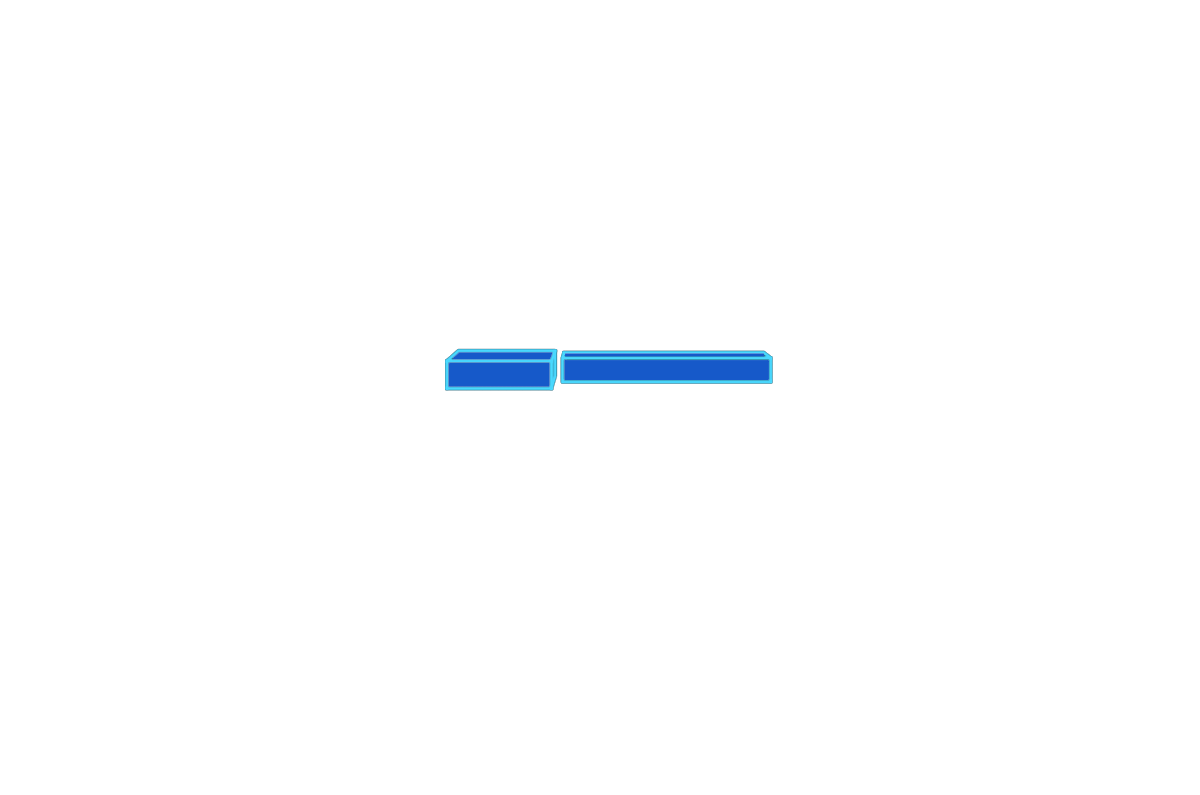

Active Machine Bed

Our new pneumatic active feet with a control loop integrated into the machines PLC system and advanced control algorithms provide significantly improved stability for the machine bed during dynamic machining processes. They provide the next relevant step for the standard sub-nanometer roughness level on ultra-precision optical surfaces. or a direct start of the technology in your production.

Also look at IL400L

Dive into the details:

IL400 General
System Configuration
Ultra precision 3 axes (XZW) CNC high dynamic machining center
Machine Base
Natural granite base for excellent accuracy
Vibration Isolation
Self leveling pneumatic isolation system (option: passive or electronically controlled active leveling)
Control System
Beckhoff TwinCAT 3 CNC high performance machine controller; Intel® Core™ i5 CPU, 6 Cores; Microsoft Windows 10 IoT Enterprise; 23" color flat panel touch screen display and 24" color flat panel display; EtherCAT bus communication technology; Digital Servo drives with 100 kHz current & position control loop frequency
Programming Resolution
1 nm linear (0.01 nm optional), 0.0000001° rotary
Set Points [pts/sec]
Up to 2,000 in CNC mode; 10,000 in DirectDrive3D
File Transfer
USB, Ethernet
Requirements
Air: 7-10 bar, 300 l/min, 10 μm prefiltered; Electrical: 400 V, 16 A, 50/60 Hz; Water: 8-10 °C, 30 l/ min; Connectivity: Ethernet
Air shower (integ.)
Air conditioning unit with filtration, flow rate 600 l/min, temp. Constancy < 0.05 °C, control integration
Machine Size
2,520 * 1,120 * 2,020 (D * W * H)
Standalone Panel Size
610 * 610 mm (D * W)
Linear Axis / X-Axis; Z-Axis
Travel
200 mm
Feedback Type
Noncontact linear encoder
Resolution
0.03125 nm
Straightness
< +/- 0.2 μm
Pitch, Roll, Yaw
< +/- 2 arcsec for all
Max. Speed
8,000 mm/min
Drive System
Brushless linear motor
Static Stiffness
X: 380 N/μm vertical; Z: 420 N/μm vertical
Media Supply
Compact integrated hydrostatic supply unit, low pulsation
Rotary Axes / C-Axis
Type
Workholding Spindle; groove compensated air bearing
Radial load capacity
70 kg at 6.9 bar (radial)
Axial load capacity
228 N/μm
Radial stiffness
98 N/μm at 6.9 bar
Axial stiffness
< 15 nm
Motion accuracy radial
< 15 nm
Velocity control
< 10,000 rpm
Position control
0-3,000 rpm
Feedback Resolution
0.008 arcsec
Thermal Control
Integrated cooling
Interface
NanoGrip
